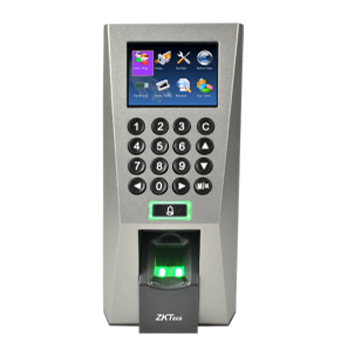

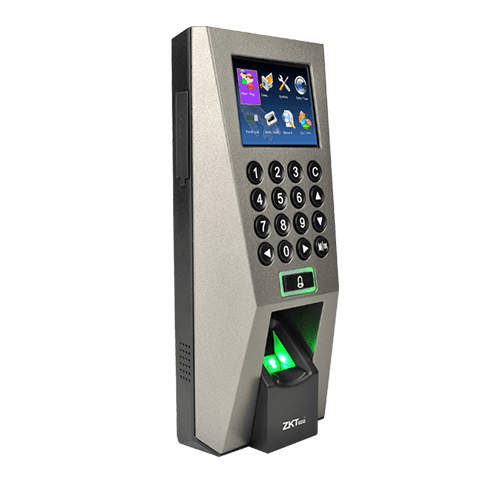

ZKTeco F18
Reads Fingerprint and/or CARD ,1 touch a-second user recognition , Tamper-proofs switch and alarm outputs ,high-image quality infrared detection fingerprint sensor ,flexibility to be INSTALLED standalone or with any third party access control panels .that support standard Wiegand signal .
Access Control And Time Attendance Machine
Built-in Serial and Ethernet ports
Fingerprint reader with durable and highly accurate ZK optical sensor
Specifications
| Fingerprint Capacity | 3000 Templates |
| Transaction Capacity | 30,000 Transactions |
| Sensor | ZK Optical Sensor |
| Algorithm Version | ZK Finger VX9.0&10.0 |
| Communication | RS232/485, TCP/IP, USB-host |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Wiegand Signal | Input and Output |
| Display | TFT LCD Color Screen |
| Interface Styles | Common, Matrix and Magic styles |
| Standard Function | Webserver, Anti-passback |
| Optional Function | ID Card, Mifare Card |
| Power Supply | 12V DC,3A |
| Operating Temperature | 0 C- 45 C |
| Operating Humidity | 20%-80% |
| Dimension(WxDxH) | 80X183X42mm |
