TYSSO MSE700
Tracks 1&2&3, 300~4000oe Coercivity,Hico/loco Configurable, RS-232/USB Two-in-One Connectivity, One Million Passes Media Life, ISO 7811-1/2/3/4/5 &ANSI 4.16 1983 Compliant

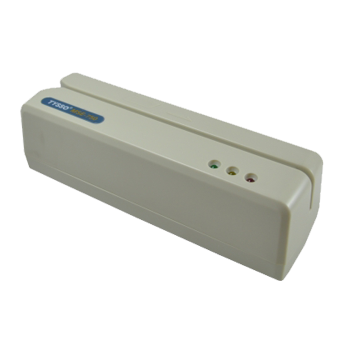

Magnetic Stripe Card Reader/Writer
Loco. and Hico. Encoder (reader/writer)
Specifications
| Standard | ISO 7811-1/2/3/4/5 &ANSI 4.16 1983 Compliant |
| Data Format | 5/6/7BPC 210/75BPI on Any Track |
| Magnetic Track | Tracks 1&2&3 |
| Interface | RJ-45 (with converting cable to USB or RS-232) |
| Coercivity | 300~2700 Oersted (read) , 300~2700 Oersted (write) |
| Media Speed | 5~50IPS (Read) / 5~30IPS (Write) |
| Media Life | 1,000,000 passes for both read and write heads |
| Low Amplitude Reading | 0% (210BPI) or 40% (75BPI) at 10~40IPS |
| Error Rate | <0.5% (read),=""><0.75%> |
| Weight | 580 g |
| Dimension (:mm) | 212(L) x 63(W) x 63(H) |
